Dodo Reference Manual

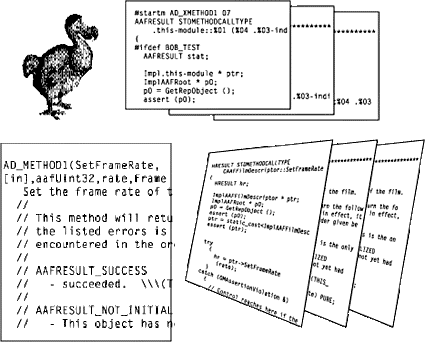

Dodo .DOD source files are simply a set of macros
These macros are expanded differently depending on the macro file used, so the same DOD
file can produce both a COM API header and a COM wrapper for the related Impl function with a similar name.
In some Macro files a lot of the macros are simply null.
Macro Arguments
The arguments passed to Macros can be several lines long (espacially in the case of comments).
Occurences of ( ) parentheses and , commas in the arguments
passed to macro have to be escaped with a backslash.
Some macros such as AD_METHOD1 are nested because AD_METHOD1 with 6
arguments invokes AD_XMETHOD1 with an extra argument in the base.mac
file, as a result of this, escaped characters in AD_METHOD1 have to
be escaped twice, an open paretheses in a comment has to be preceeded
by three back slashes \\\(.
A \ (backslash) character immediately before a newline, indicates
a continuation line escaped so that it will not appear in the output.
Usage: dodo -f macro_file
Expects input .dod file on standard input, writes the expanded output
to standard out.
The macro files also include the base.mac file which contains
common definitions.
Some of the macro files are only used once to generate an initial framework
for an implementation file, for instance once you have a constructed
a .dod file for your interface you can generate a empty implementation
with the command:
dodo -m macros/cpp.mac < AAFMyInterface.dod
Comments
The comments for methods and interfaces follow a pretty repetitive
format, since they are extracted from the IDL file by the DocJet tool
to generate the COMAPI manual it is best to follow the existing style
of indentation and line breaks.
The macros subdirectory
contains the following different variants:
| macros |
Depends on |
Used to generate |
| comh.mac |
|
COM header files
ref-impl/src/com-api/CAAF*.h
|
| comc.mac |
|
COM C++ wrapper files, boilerplate code to automatically invoke
underlying Impl methods of the same name.
ref-impl/src/com-api/CAFF*.cpp
|
| comcx.mac |
|
COM mix-in interface classes |
| |
|
|
| h.mac |
- |
C++ API header files |
| cpp.mac |
- |
C++ API CPP files |
| comt.mac |
- |
- |
| cppt.mac |
- |
COM unit test implementation files |
| dod2iid.mac |
|
Strips out the Interface Identifiers |
| exp.mac |
- |
Intermediate Export files for export to other source files |
| |
|
|
| frefh.mac |
* |
Generates the rolled up header file that lists all the AAF Interfaces:
ref-impl/include/AAF.h |
| fidl.mac |
* |
Generates the IDL version of the above:
ref-impl/include/AAF.idl, AAFPrivate.idl, AAFPlugin.idl |
| |
|
|
| idl.mac |
AAFPluginTypes.dod, AAFTypes.dod |
AAFPluginTypes.idl, AAFTypes.idl |
| |
|
|
| implh.mac |
AAFRoot.dod |
ImplAAFRoot.h |
| implc.mac |
AAFRoot.dod |
ImplAAFRoot.cpp |
All Dodo directives in the macro file start at the beginning of a line,
and start with the '#' character.
Macro Arguments
The arguments passed to a macro are substituted in the body with the
notation %n, where n is a digit starting at 1 for the first argument.
Comments
Dodo comment lines begin with #c
Directives
the #import directive will include another macro file
Macro definitions are delimited with
#startm <macro_name> <num_args>
<macro expansion specification line 1>
<macro expansion specification line 2>
...
<macro expansion specification line n>
#endm
Whenever the macro_name(<args>) is encountered in the source
file, it will be replaced with the multi-line macro expansion in the
output file.
Special Macros
conventionally defined at the top of each dod file
.this-module
expanded to the class or interface name such as C.this-module and Impl.this-module
.parent-module
the parent class for public inheritance at the implementation level,
used to aggregate the interfaces at the COM API level by importing the
methods of the parent.
Special Rules
- Any arguments specified within a macro expansion specification using
the %n syntax must have numbers that are 1 or greater, and
are less than or equal to the num_args value for that macro.
- Any macro invocation in the input file must be given precisely
the number of arguments given in the num_args field of the macro's
definition.
|
|
